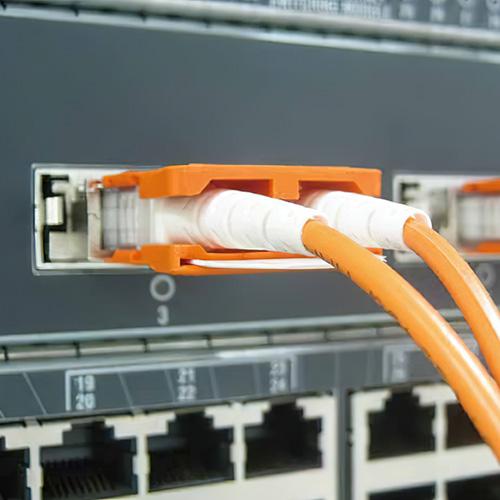

Fiber optic connector, also known as fiber optic patch cord, can connect the two ends of fiber optic precisely with very low insertion loss.

NJGIANT can provide different fiber optic cable and connectors for customization.

Including simplex, duplex, miniature-double cable.

And SC/FC/LC/ST/MU/MT-RJ/E2000 connector.

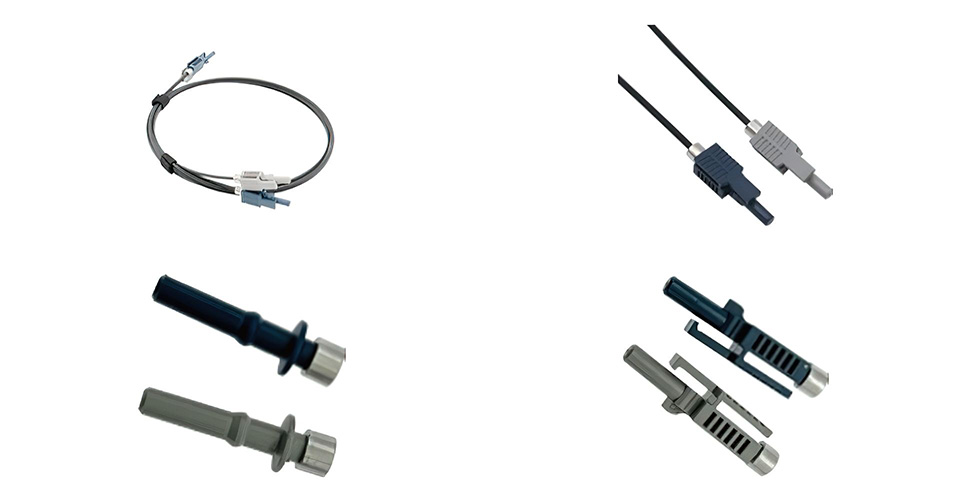

Product Pictures

SILICA OPTIC FIBER PATCH CORD PERFORMANCE
Test Item	FC/SC/ST/LC/MU		MT-RJ
Test Item	Grade A (standard)	Grade B (first-calss)	MM	SM
Insertion Loss	≤0.3 (type:0.15)	≤0.2 (type:0.10)	＜0.5 (repeatability)	＜0.55 (repeatability)
Return Loss	PC≥40 APC≥50	PC≥45 APC≥55	＞25	＞35

ENVIRONMENTAL AND MECHANICAL PERFORMANCE FC/SC/ST/LC/MU
Test Item	Performance Condition	Insertion Loss
High Temperature	+85℃, 168h	0.2dB
Temperature Cycle	-40 ℃～+75℃, 21cycles, 168h	0.2dB
Humidity Aging	75℃, 95%R.H. 168h	0.2dB
H/C Cycling	-10℃~+65℃, 95%~100%R.H. 14 cycle, 168h	0.2dB
Vibration	10 Hz～55Hz, 1.5mm(p-p)	0.1dB
Flex	0.6～0.9kgf, -90°～+90°100 cycles	0.1dB
Twist	1.5～2.5kgf, 10 times/min,±180°, 200times	0.1dB
Tension	70～90N, 10min	0.1dB
Impact	1.5m, 8 times	0.2dB
repeatability	10 times	0.2dB
Exchangeability	Randomly	0.2dB
Durability	>500 times	0.2dB
Locking	68.6N, 10min	0.1dB
Note: Please see Telcordia GR-326-CORE or IEC standard

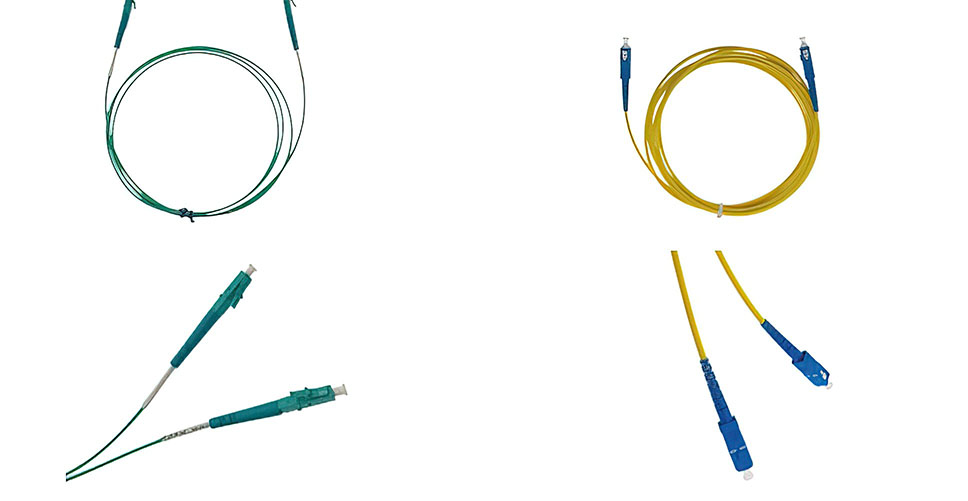

Product Pictures

Feature:

●High reliability and stability

●End face geometry compliance with GR-326Core

●Low insertion loss ,High return loss

●Varied construction to select

●High grade fiber end face polishing standard

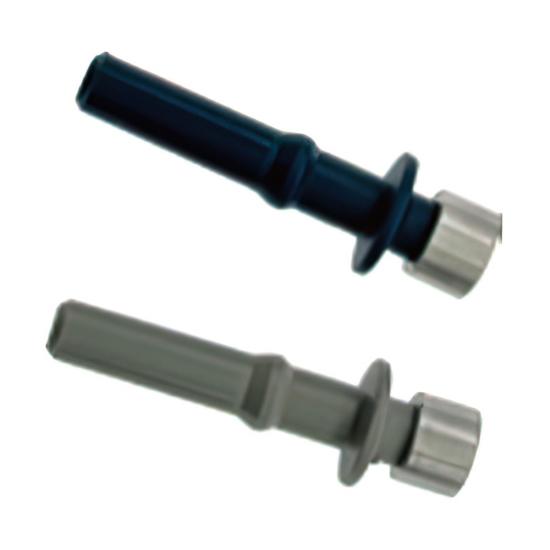

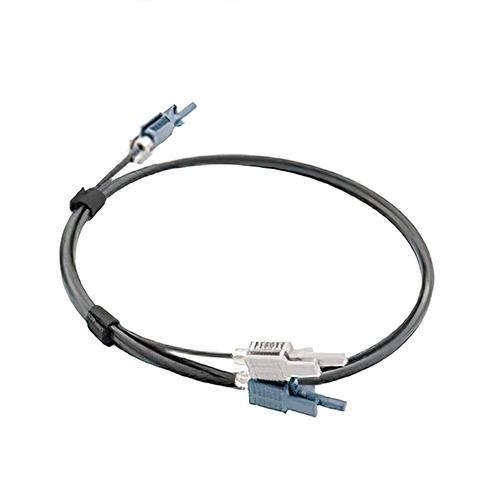

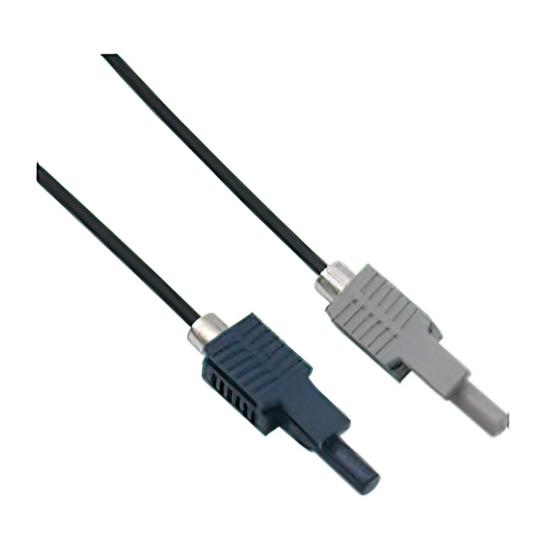

PLASTIC OPTIC FIBER (POF) PATCH CORD PERFORMANCE

Project

Insertion Loss

Fiber Material

Fiber Diameter

Wavelength

Numerical Aperture

Temperature

Standard Requirement

≦0.50dB

PMMA

Ф1.0/2.2mm

650nm

0.47

-40～70℃

ENVIRONMENTAL AND MECHANICAL PERFORMANCE MT-RJ
Test Item	Performance Condition	Insertion Loss
High Temperature	+60℃, 96h	0.2dB
Low Temperature	-10℃, 96h	0.2dB
Temperature Cycle	-10℃～+60℃, 12 cycles, 96h	0.2dB
Humidity Aging	40℃, 95%R.H, 96h	0.2dB
Vibration	10 Hz～55Hz, 1.5mm(p-p)	0.2dB
Flex	0.6～0.9kgf, -90°～+90°100 cycles	0.2dB
Twist	1.5～2.5kgf, 10 times/min,±180°, 200times	0.2dB
Tension	70～90N, 10min	0.2dB
Impact	1.5m, 8 times	0.2dB
repeatability	10 times	0.2dB
Durability	>500 times	0.2dB
Note: Please see Telcordia GR-326-CORE or IEC standard

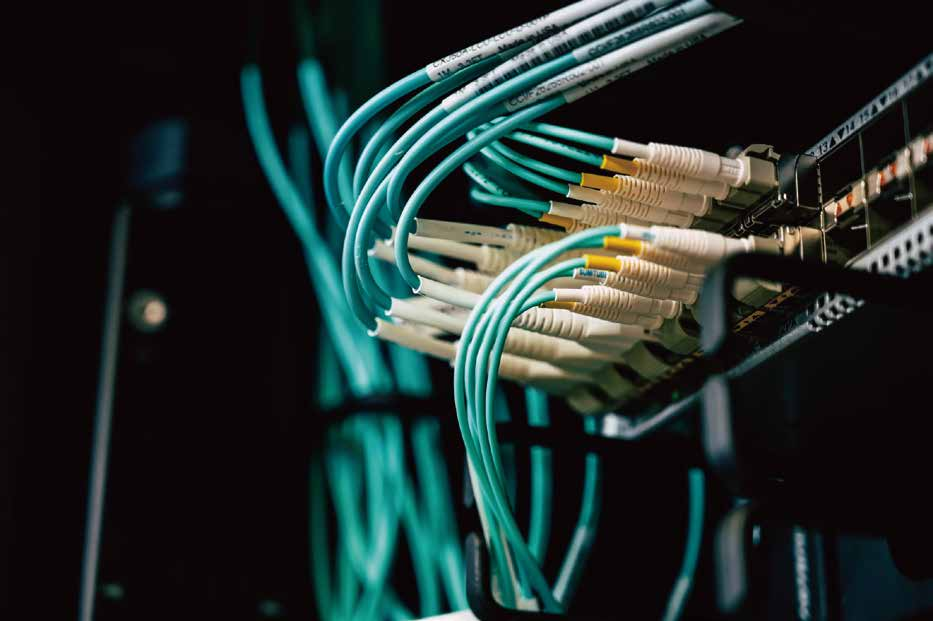

Application Field:

●Telecommunication Networks

●Active or passive device termination

●Gigabit Ethernet

●CATV

●Industrial, medical & military

Related Products

Fibre optic light guides

Our Factory

Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.

FAQ

Q: What is the application?
A: Laser transmission, spectrum detection, lighting, sensors, medical sensing, medical diagnosis and other fields.
Q: Is there certification?
A: ISO certification and RoHS testing.
Q: How long is the warranty?
A: 18 months.
Q: How to install?
A: Contact customer service to ask for installation drawings.
Q: Can it be customized?
A: Yes, contact customer service for customization.
Q: Are there samples?
A: Contact customer service to put forward your request.
Q: How long is the delivery period and how long will it take to receive it?
A: The specific decision is based on the customized product, which can generally be completed within one month.
Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
