Plastic Fiber Optic Cable
Home /

Material & Accessories

/

Plastic Fiber Optic Cable

/Multi-String Fiber Optic Cable

Multi-String Fiber Optic Cable

End Light Fiber Optic cable for lighting, used for indoor & outdoor decoration.

Multi string endglow fiber optic is suitable for Chandelier, building and swimming pool lighting.

  • Item NO.:

    GFEL
  • Product Origin:

    Jiangsu, China
  • Main Material:

    PMMA
  • Numerical Aperture:

    0.5
  • Application:

    swimming pool lighting
  • Light Source Type:

    LED
  • Diameter:

    0.75mm
Share To : Facebook Twitter Youtube Linkedin ins
Product Details

Multi-String Optical Fiber Cable


PRODUCT
Multi-String Fiber Optic Cable
Core Material
PMMA
Refractive Index
1.49
Max Receive Angle
60º
Attenuation (dB/km) ≤350(650nm)
Bend Radius (mm)
≥10*Fiber Diameter
Operation Temperature
-20~70℃
Fiber Diameter (mm)
0.75mm*7/0.75mm*14

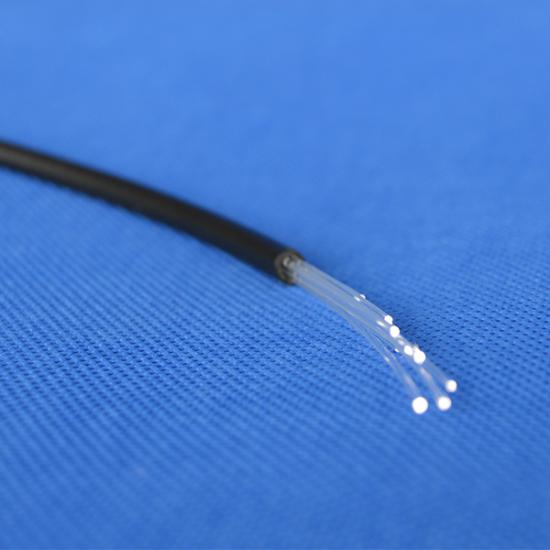

Our Multi-stranded end glow optical cable is made of multi-core end emitting fiber with black PVC jacket. Better anti-crunch , anti-stretch , anti-grinding , and anti-aging performances brought by the black PVC jacket , extending operation life ; Unique loose jacket adopted in the lighting series , easy to peel off; Varied end-lighting effect created by cables (with different number of fibers)of different diameters, better end-lighting effect than single core fiber or cable.


The fiber diameter is generally 0.75mm, and the number of cores is a multiple of 7. 7, 14, 21, 28, 35, 42 strands types available. Multi-stranded end emitting fibre cable consists of multiple polymer fibres, surrounded by a protective sheathing for mechanical protection.


Cables are normally attached to a fiber optic end emitting fixture or are used for decorative applications such as fibre optic star ceilings, swimming pool light.Also,it is a good choice at Museum, Garden, Ceiling&Floor, Pool and others project where require end lit decoration.


Please contact customer service for  different specifications of optical fiber.


It would be helpful to have the following information ready for discussion:

  • Variety of product model.
  • Variety of fiber diameter.



Product Pictures

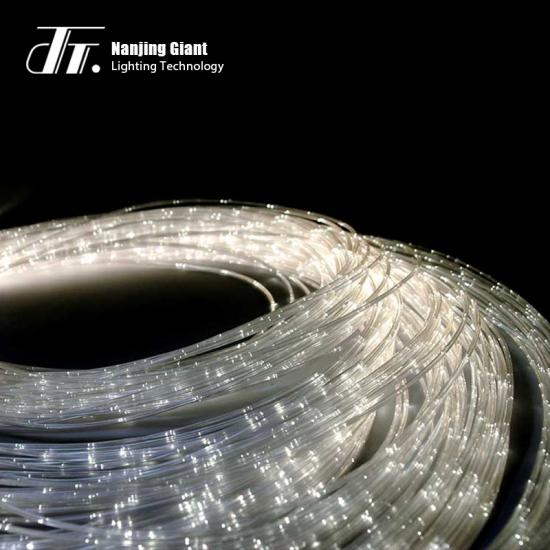

PMMA Fiber Optic CablePMMA Fiber Optic Cable

  • Core Material: Polymethyl Methacrylate
  • Cladding Material: Fluorinated PMMA
  • Refractive Index: 1.49
  • Refractive Index Profile: Step Index
  • Numerical Aperture: 0.5
  • Operation Temperature Range: -55°- +70°C in low humidity; <60°C at 95% RH (attenuation change is within 10% after 1000hourcs except for that due to absorbed water).


Black PVC jacketed endglow fiber optics lighting for pool lighting

  • Plastic optical fiber is formed by high refractive index polymer core and clad with low refractive index polymer.
  • Black jacketed end glow fiber optics is multi strand fibers protected in a flexible PVC jacket for ease of handling and fiber protection.


Product Features


Swimming Pool Fiber Optic LightsSwimming Pool Fiber Optic Lights

Swimming Pool Fiber Optic LightsSwimming Pool Fiber Optic Lights


Related Products


Fiber Optic Light


Our Factory


Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


FAQ


Q: What is the application?
A: Mainly used in: illumination and signal transmission, fiber optical sensor, indoor and outdoor decorative illumination.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 3 years.

Q: How far is the farthest pass?
A: More than 50 meters.

Q: Can the size be customized?
A: Yes, contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: Generally within 2-4 weeks, depending on the product.

Q: Is there a color?
A: Generally white, please contact customer service for other colors.

Q: Can optical fiber emit light?
A: Plastic optical fiber does not emit light. It is only a medium for transmitting light, and it needs to be equipped with a light source.

Q: Is plastic optical fiber safe?
A: Safe, the plastic itself is not conductive.
