Plastic Fiber Optic Cable
Home /

Material & Accessories

/

Plastic Fiber Optic Cable

/Single-String Fiber Optic Cable

Single-String Fiber Optic Cable

Plastic Single-String Fiber Optic Cable,it is processed from plastic bare fiber optic,the black PVC jacket can protect inner fiber well,keep it longer life,avoide light losing and get more brightness from light source.

Now it is widely used in some wet or humid ares such as sauna room, spa, bathroom, swimming pool to make starry sky effect.

  • Item NO.:

    GFE
  • Product Origin:

    Jiangsu, China
  • Main Material:

    PMMA, MMA
  • Lighting Colour:

    RGB
  • Numerical Aperture:

    0.5
  • Application:

    Sauna Room Decoration, Pool Light
  • Light Source Type:

    LED
  • Diameter:

    1.5mm-18mm
Share To : Facebook Twitter Youtube Linkedin ins
Product Details

Single-String Fiber Optic Cable


PRODUCT
Single-String Fiber Optic Cable
Core Material
PMMA
Refractive Index
1.49
Max Receive Angle
60º
Attenuation (dB/km) ≤350(650nm)
Bend Radius (mm)
≥10*Fiber Diameter
Operation Temperature
-20~70℃
Fiber Diameter (mm)
0.75/1.0/1.5/2.0/2.5/3.0


PMMA Fiber Optic, also known as Plastic optical fiber (POF) ,Polymer Optical Fibre, is an optical fiber that is made of polymer. Similar to glass optical fiber, POF transmits light (for fiber optic lighting or data transmission) through the fiber core. Compared with traditional fiber optics, PMMA fiber optic has better bending radius and stretching.



Our solid core side emitting fiber cable has two types: solid core side glow fiber and solid core side glow cable. It is a single large diameter filament which can transmit light over reasonably long distances. Light is transmitted over the entire length of the solid core optic, without electricity or heat. By sheathing with transparent PVC cover, the fiber can be well protected and UV protection function is available.


Solid Core Fiber Cable Applications: The solid core fiber and cable are mainly Sauna/Spa lighting, Swimming Pool Lighting, starry ceiling lighting, holiday lighting, Limo Lighting and any other places you can imagine.


Please contact customer service for  different specifications of optical fiber.


It would be helpful to have the following information ready for discussion:

  • Variety of product model.
  • Variety of fiber diameter.

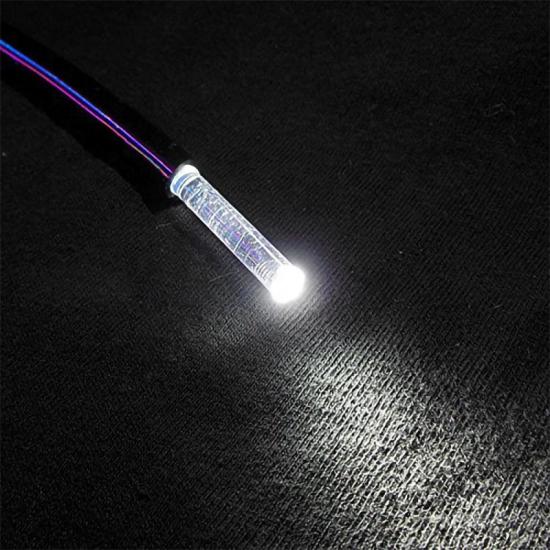

Product Pictures


single strand fibresingle strand fibre

Solid Core Side Emitting Fiber Cable Characteristics:

  • Safe, transmit light only, no conductivity or heat transferring;
  • Being able to transmit visible light but not ultraviolet or infrared;
  • Unique loose jacket adopted in the lighting series , easy to peel off,install and maintenance;
  • Good flexibility,stable performance, anti-aging, long lifespan;
  • Longer transmission distance, up to 50meters;
  • Operating temperature: -20 ~ +70℃
  • Allowable bending radius: ≥ten times of the fiber diameter.


Black PVC jacketed endglow fiber optics lighting for sauna lighting:

  • Plastic optical fiber is formed by high refractive index polymer core and clad with low refractive index polymer.
  • It is widely used for local network communication, optical fiber single transfer, optic lighting and equipments and instruments application.


Product Features


Optical Fibre Optic Sauna Light KitOptical Fibre Optic Sauna Light Kit


Related Products


Optical Fibre Optic Light Kit

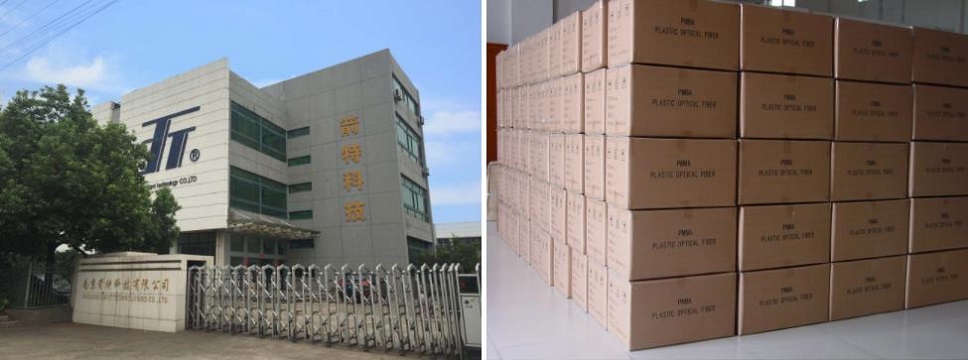

Our Factory


Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


FAQ


Q: What is the application?
A: Mainly used in: illumination and signal transmission, fiber optical sensor, indoor and outdoor decorative illumination.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 3 years.

Q: How far is the farthest pass?
A: More than 50 meters.

Q: Can the size be customized?
A: Yes, contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: Generally within 2-4 weeks, depending on the product.

Q: Is there a color?
A: Generally white, please contact customer service for other colors.

Q: Can optical fiber emit light?
A: Plastic optical fiber does not emit light. It is only a medium for transmitting light, and it needs to be equipped with a light source.

Q: Is plastic optical fiber safe?
A: Safe, the plastic itself is not conductive.
