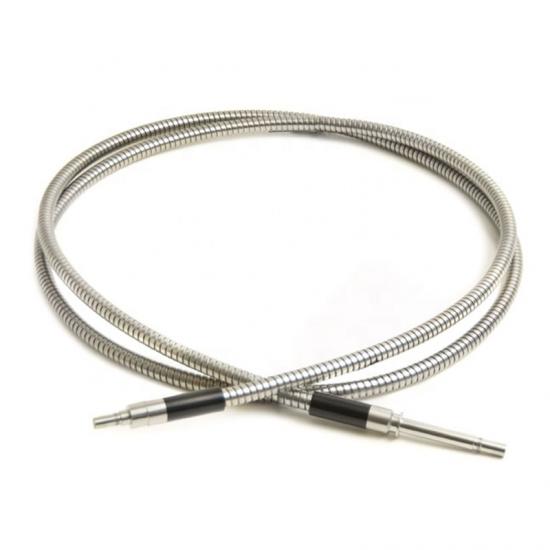

Liquid Core Light Guide

Liquid light guide is a new kind of light transmission device.
It uses liquid material as core material, polymer material as the cortex tube.
It has large core diameter, large numerical aperture, wide transmission spectrum, high efficiency lighttransmission, especially in the UV band has excellent light transmission efficiency.
It is especially suitable for UV curing, fluorescence detection, forensic evidence, scientific research and soon.
  • Product Origin:

    Jiangsu, China
  • Main Material:

    Liquid
  • Product Size:

    Custom
  • Application:

    Uv Curing,Fluorescence Detection,Forensic Evidence,Scientific Research
  • Fiber Material:

    Liquid Optical Fiber
Share To : Facebook Twitter Youtube Linkedin ins
Product Details


According to the different core material, liquid light guide can be divided into 300 and 380. The effectivetransmission range of 300 is 300-600nm, the effective transmission range of 380 is 300-800nm.


Please contact customer service for  different specifications of optical fiber.


It would be helpful to have the following information ready for discussion:

  • Variety of standard interface.
  • Variety of specifications, sizes.

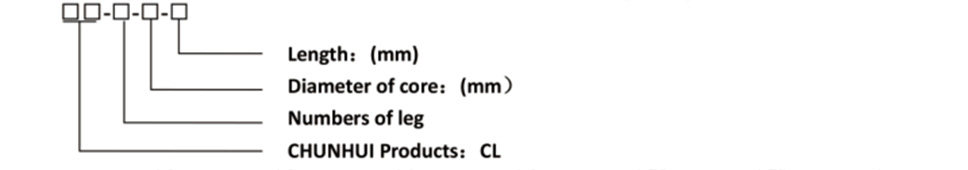

The Rule Of Specification:

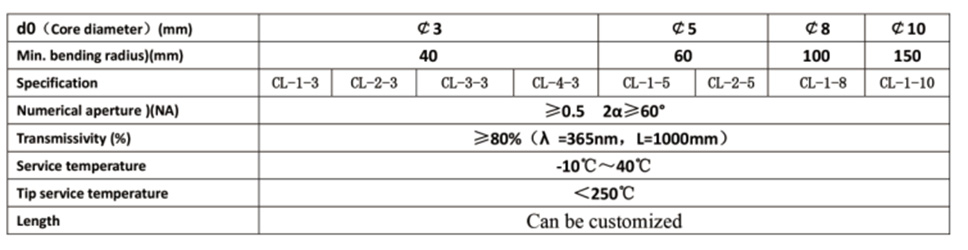

Technology Data Of Liquid Light Guide:

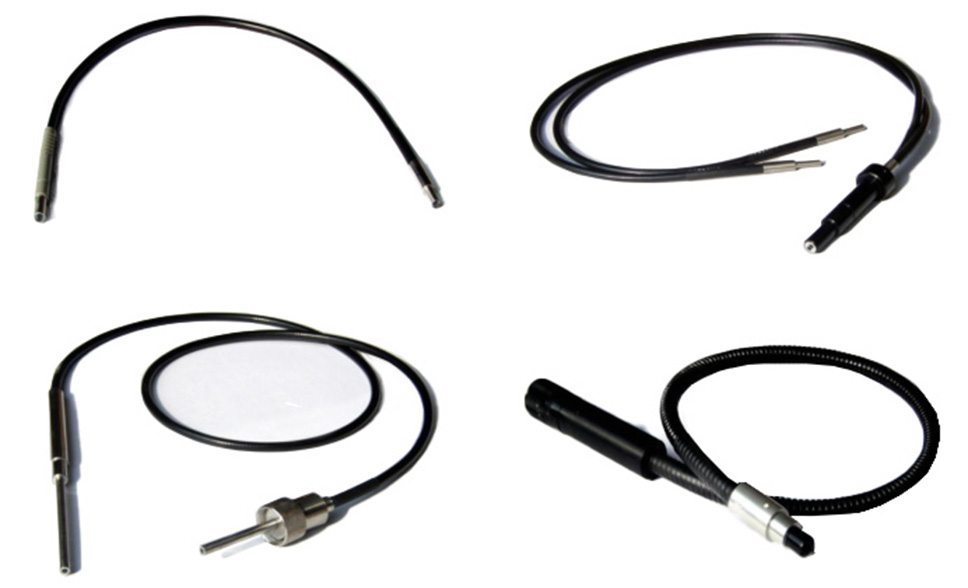

Product Pictures

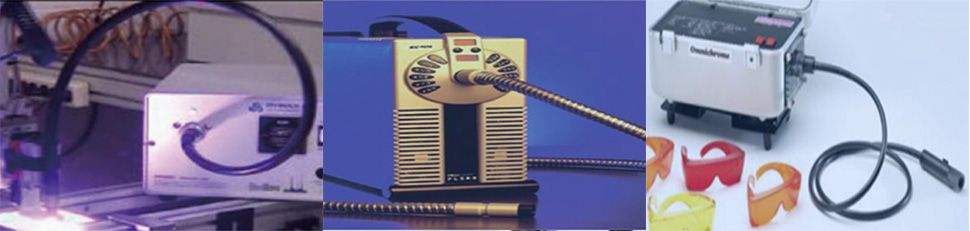

                  UV curing machine                                         Criminal investigation                                        Fluorescent detection


Product Features

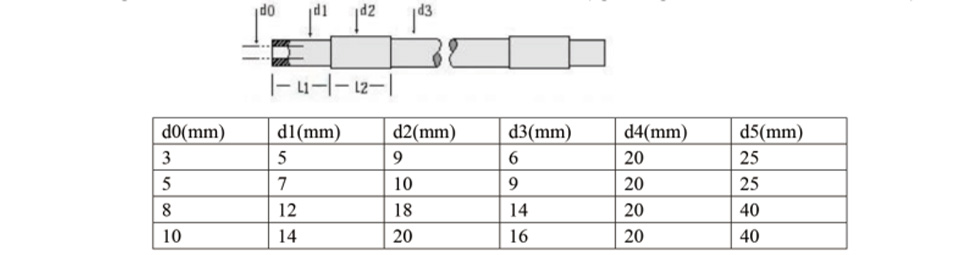

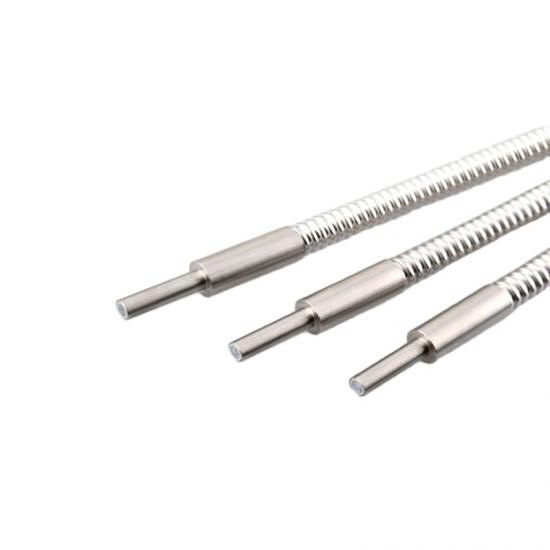

Optical standard metal connector dimensions are as follows: (Special specifications can be customized)



Caution Ofapplication:

Liquid light guide is composed of silica window, core material, cortex pipe, casing, dust cap and metalconnector, belonging to the precision devices and fragile devices. Please pay attention to the followingitems.


1.Please handle gently to avoid metal collision and falling fast. If so, it is easy to cause the damage ofoptical window, the optical fiber will scrap. When not in use, please set the dust cap on the opticalwindow to avoid unnecessary damage of optical window.

2.Fiber has a certain bending radius in technology, so when in use,please try to expand the bending radiusto avoid bending fiber lf so, it is easy to cause cortex pipe creases or broken inside the fiber, and fibertransmission rate will be significantly reduced, or even scrapped.

3.Avoid extrusion, if it exceeds the bearing strength of the sheath, it is easy to cause the inside of the fiber optic tube to fold or break, and the transmittance of the optical fiber will be obviously reduced,or even scrapped.

4.If the optical window sticks dust or dirt, please clean with lens cleaning cloth and alcohol cotton. Pleasedon't use the hard things to scratch, or it will cause the scratch on the optical window, and affect the opticalfiber transmission.

5.If there is a organic glue on the optical window, please don't scratch with hard things, please use theorganic solution which can dissolve organic matter but cause no damage to the metal joint, such as alcoholacetone, ethyl acetate to soak the metal joint. Or bake with a temperature not higher than 250°C , and thenuse the lens cleaning cloth and the alcohol cotton to clean the optical window.

6.The fiber core material is a kind of inorganic salt solution which is harmless to the human body. If thefiber is damaged, please directly pour the core material into tap water sewer. lf the core material adhered tothe clothes and skin, as soon as possible wash it with tap water.

7.Use and storage temperature: -5-40℃


Related Products


Customized Fiber Light GuidesCustomized Fiber Light Guides

Customized Fiber Light GuidesCustomized Fiber Light Guides


Our Factory


Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


FAQ


Q: What is the application?
A: Laser transmission, spectrum detection, lighting, sensors, medical sensing, medical diagnosis and other fields.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 18 months.

Q: How to install?
A: Contact customer service to ask for installation drawings.

Q: Can it be customized?
A: Yes, contact customer service for customization.

Q: Are there samples?
A: Contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: The specific decision is based on the customized product, which can generally be completed within one month.

Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
