Glass Fiber Optic Light Guide

/Multi-Branched Fiber Optic Bundles

Multi-Branched Fiber Optic Bundles

Various sizes and distributions can be customized.

Can provide a wide spectral conductance.
A variety of standard interfaces are available to couple LED and Halogen light sources.


  • Product Origin:

    Jiangsu, China
  • Main Material:

    PMMA, Glass, Silica Fiber Optic
  • Numerical Aperture:

    0.56,0.6,0.64,0.83
  • Application:

    Communication, Art, Sensor, Medicine, Probe
Share To : Facebook Twitter Youtube Linkedin ins
Product Details

Multi-branch Fused Sillica Fiber Optic Bundles


PRODUCT
GLASS FIBER OPTIC LIGHT GUIDE
Single Diameter
15μm-55μm
Numerical Aperture
0.56, 0.6, 0.64, 0.83
Heat Resistance
≥500℃
Transmissivity/m
≥56%
Fiber Strength >150kg/mm²
Spectrum Range
380nm-1300nm


We provide custom fiber optic bundles in accordance with customers requirements: fiber types, materials and diameters, quantities (from small batch to several hundred), connectors types, customized ferrules, wavelength, numerical apertures, etc.


Our engineering flexibility also concerns mechanics and assembling. Actually, Fibers assembling process can be realized without glue which enables to resist a very high power laser (> 1 watt). Otherwise, specific lenses can be put in front of such assemblies.



We also produces multi-branch assemblies where fibers are held together on the one end and divided into several branches on the other hand. Positioning of each optical fiber within branches can be precisely determined and implemented in order to meet the required distribution at the end.


Please contact customer service for  different specifications of optical fiber.


It would be helpful to have the following information ready for discussion:

  • Variety of standard interface.
  • Variety of specifications, sizes.



Product Pictures

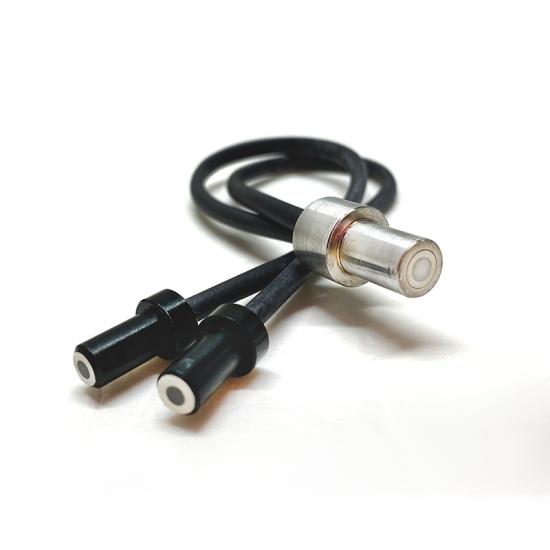

Multi-branch Fused Sillica Fiber Optic BundlesMulti-branch Fused Sillica Fiber Optic Bundles

Fiber Optic BundlesCustomized Fiber Light Guides


Product Features


Customized Fiber Light Guides


Related Products


Customized Fiber Light GuidesCustomized Fiber Light Guides

Customized Fiber Light GuidesCustomized Fiber Light Guides


Our Factory


Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


FAQ


Q: What is the application?
A: Laser transmission, spectrum detection, lighting, sensors, medical sensing, medical diagnosis and other fields.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 18 months.

Q: How to install?
A: Contact customer service to ask for installation drawings.

Q: Can it be customized?
A: Yes, contact customer service for customization.

Q: Are there samples?
A: Contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: The specific decision is based on the customized product, which can generally be completed within one month.

Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
