Glass Fiber Optic Light Guide

/Optical Fiber Dual Arms Light Guide

Optical Fiber Dual Arms Light Guide

Use these light guides for applications where lighting from two directions is need like when using a microscope or CCD camera or for pattern recognition.

Interlock type tube material allows you to bend the type as needed and fix it in place.

SUS flexible type tube material allows you to move the light guide around freely in a small space. Small diameter type light guides with a smaller minimum bend radius are also available.


  • Product Origin:

    Jiangsu, China
  • Main Material:

    PMMA, Glass, Silica Fiber Optic
  • Numerical Aperture:

    0.56,0.6,0.64,0.83
  • Application:

    Communication, Art, Sensor, Medicine, Probe, Lighting
Share To : Facebook Twitter Youtube Linkedin ins
Product Details

Dual Arm Fiber Optic Light Guide


PRODUCT
GLASS FIBER OPTIC LIGHT GUIDE
Single Diameter
15μm-55μm
Numerical Aperture
0.56, 0.6, 0.64, 0.83
Heat Resistance
≥500℃
Transmissivity/m
≥56%
Fiber Strength >150kg/mm²
Spectrum Range
380nm-1300nm


  • 70% Typical illuminator Coupling Efficiency
  • Cool, Uniform Illumination
  • Crimped Stainless Steel Terminations
  • Ground and Polished Glass Fibers
  • We offer a variety of fiber optic cables for use with their compact and modular spectroscopy instrumentation. Fiber optic cables provide an easy way to transmit light without need for system alignment or attenuation of signal.


Please contact customer service for  different specifications of optical fiber.


It would be helpful to have the following information ready for discussion:

  • Variety of standard interface.
  • Variety of specifications, sizes.



Product Pictures

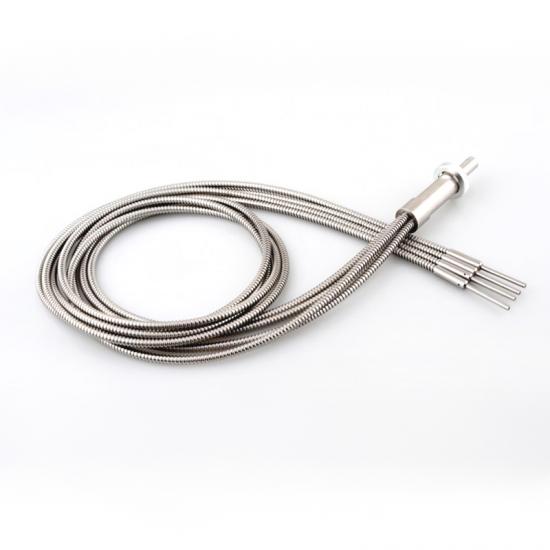

Dual Arm Fiber Optic Light GuidesDual Arm Fiber Optic Light Guide

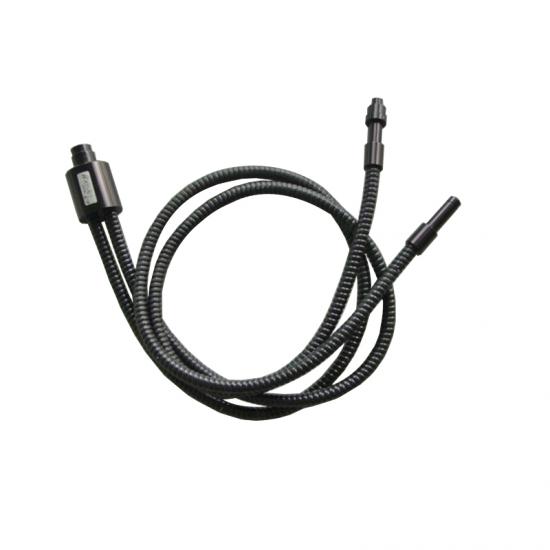

Dual Branch Light GuidesFlexible Dual Arm Light Guide


Product Features


Flexible Dual Arm Light Guide


Related Products


Optical Fiber CableOptical Fiber Cable

Optical Fiber CableOptical Fiber Cable


Our Factory


Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


FAQ


Q: What is the application?
A: Laser transmission, spectrum detection, lighting, sensors, medical sensing, medical diagnosis and other fields.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 18 months.

Q: How to install?
A: Contact customer service to ask for installation drawings.

Q: Can it be customized?
A: Yes, contact customer service for customization.

Q: Are there samples?
A: Contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: The specific decision is based on the customized product, which can generally be completed within one month.

Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
