/16W GLE-16 Light Engine

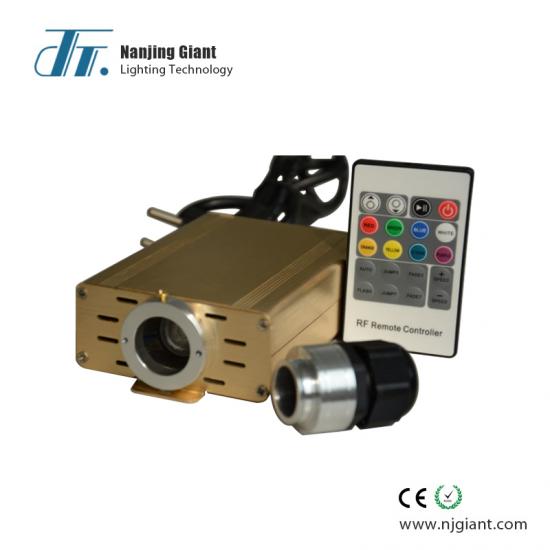

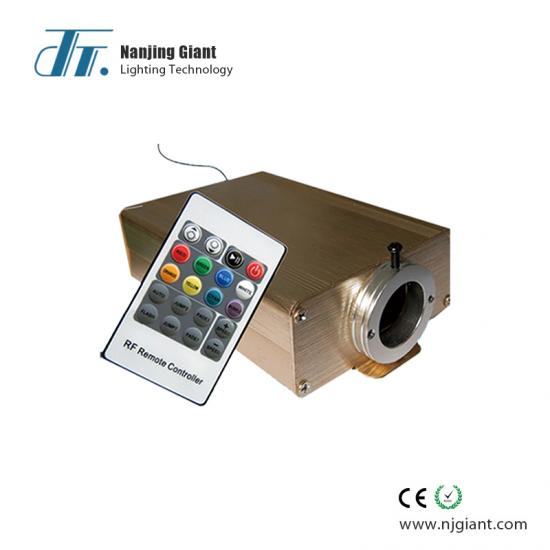

16W GLE-16 Light Engine

1.RGB fiber optic LED light engine, a new products after combination of LED & fiber.
2.16W LED light Engine is widely used for Optic fiber light illumination for home ceiling, hotel, KTV ceiling etc.

3.This sets make amazing twinkle stars effect in white, red, green, blue, purple, cyan, yellow, pink and many kinds of color changing effect.

  • Item NO.:

  • Product Origin:

    Jiangsu, China
  • Main Material:

  • Power:

  • Lighting Colour:

  • Remote Control:

  • Application:

    Room or car star ceiling decoration
  • Light Source Type:

Share To : Facebook Twitter Youtube Linkedin ins
Product Details

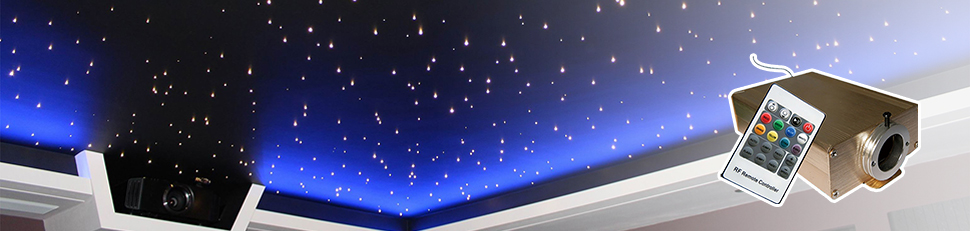

Fiber Optic Panel Star Ceiling

16W GLE-16 Light Engine
Bulb Type
Hole Diameter
Light Source Size 160*155*55mm

Please contact customer service for  different  models of light engine.

It would be helpful to have the following information ready for discussion:

  • Variety of product model.
  • Variety of color, size.

Product characteristics:

  • Brand New and high quality.
  • Infrared and ultraviolet rays are filtered to protect the optical fiber.
  • Low noise working, built-in cooling fan, Intelligent protection of the whole machine.
  • Use remote controller to fix the light color or choose the status of automatic color gradient, it can be also mixed lighting.
  • 16WLED high power, instead of the previous metal halide lamp, small size, light weight, power saving, environmental protection.

Product Specification:

  • Power: 16w

  • LED chip: RGB LED

  • Remote: IR 24key remote control

  • Light color: 7 colors(Red, yellow, blue, green, white, pink, light green)

  • Working temperature: -10-40 degrees

  • Remote controller battery: 1pcs CR2025 button battery

  • Fiber head inner diameter:20mmCan install 0.75MM 600 fibers or 1mm 300 fibers

  • Size: (L)X(W)X(H) 160*155*55mm

  • Plug: China National Standard Plug(We will be based on your country to send the corresponding adapter plug)

Product Pictures

Fiber optic installation of punchingCheap LED Light Engine

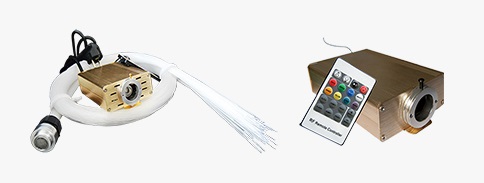

Fiber optic kits composed of light engine:

The light engine is generally used with fiber optic bundles, which can produce various starry sky and meteor dream effects.

Package included:

  • 1 Pcs Lights Engine

  • 1 Pcs Remote controller

  • 1 Pcs Chinese and English manual

Start up

Plug the power cord access to the suitable socket,Connected to the power socket, power switch in the "o"of position, in the "I" position for the boot state, by switching to the "I" position, light source device to enter the working state

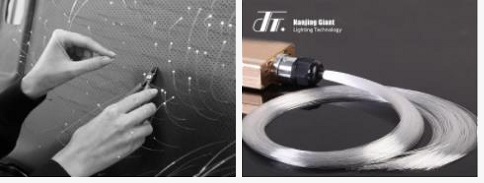

Optical fiber connection method with the machine

Will be the first to use fiber-optic transparent shrink film tied into a bouquet,with a aharp knife to cut the formation of the first optical fiber, And then polished to optical fiber polished head will be inserted to deal with a good optical fiber coupling the first head, coupling head screw clockwise, and then you can screw fastening.


Product Features

Muti Color For Car Home Roof LampRolls-Royce fibre optic Starlight Headliner

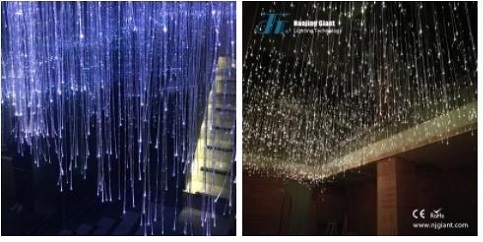

Pendant Changing Color Fiber Optic Chandelierdiy fibre optic hanging light

Related Products

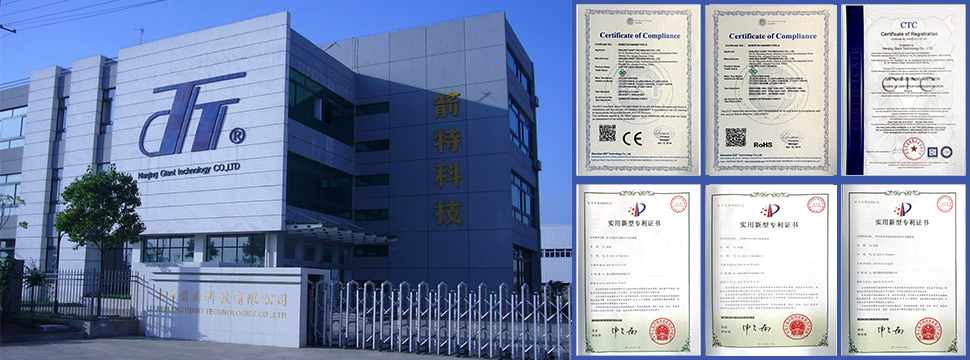

Our Factory

Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


Q: What is the function of the light engine?
A: Our LED light engine was created to provide a powerful alternative for lighting applications where low voltage and brilliant colors are required.

Q: How long is the warranty?
A: One year.

Q: Can it be remotely controlled?
A: Yes.For control method, sound control, DMX control, mobile control, wifi control, RF control are all can be realized by LED light engine.

Q: Can it be customized?
A: Yes, contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: 2-4 weeks.
