Side Glow Plastic Fiber Optic

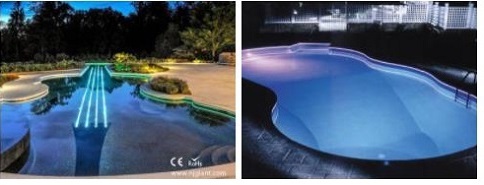

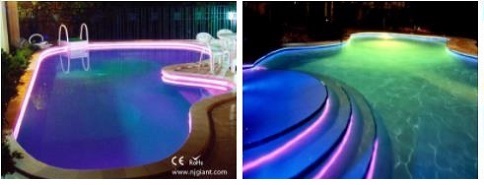

Pool lights is used for edge swimmg pool light and Fibre Optic Pool Lighting is undoubtedly the best lighting solution for in and around pools.

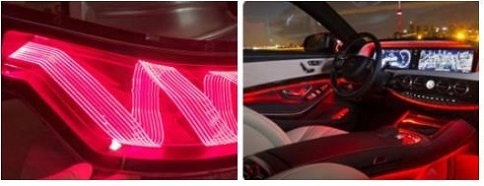

Now many car drivers trend to use it decorate their car.


  • Item NO.:

    GFE
  • Product Origin:

    Jiangsu, China
  • Main Material:

    PMMA, MMA
  • Lighting Colour:

    RGB
  • Numerical Aperture:

    0.5
  • Application:

    Sensory Lighting, Pool Light, Car Roof Star Ceiling Light
  • Light Source Type:

    LED
  • Diameter:

    1.5mm-18mm
Share To : Facebook Twitter Youtube Linkedin ins
Product Details

Side Glow Plastic Fiber Optic


PRODUCT
PLASTIC FIBER OPTIC
Product Model
GFE-L
Core Material
PMMA
Model
GPOF,100m/RL
Attenuation (dB/km) <0.3dB/m
Bend Radius (mm)
6 X Inner diameter
Operation Temperature
-20~80℃
Fiber Diameter (mm)
1.5/2.0/3.0/4.0/5.0/6.0/8.0/10/11/12/14


Fiber optics themselves are clear and colorless, so a fiber optic lighting system installed in a project will take on whatever color light you shine through it, or undulate with color patterns if your light source is programmable or dynamic.



The plastic fibers function is light shining in one end from a source of illumination, like an LED or a laser, travels down the fiber optic strand and emerges at the other end. Fiber optics come in a variety of diameters, shapes and types.



Side emitting fibers (also called side glow, or side light) are usually larger and more flexible than end emitting fibers.

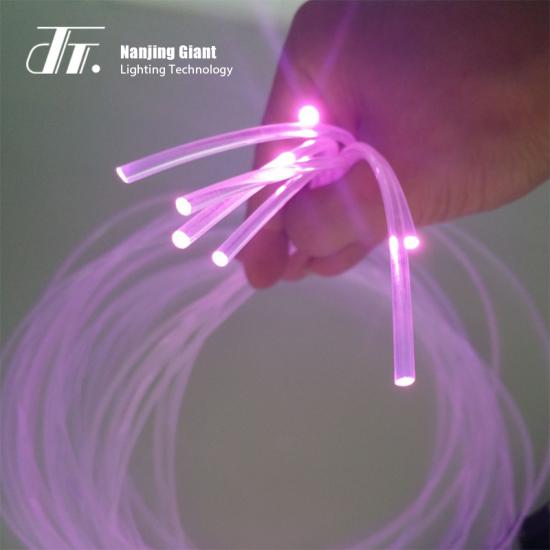

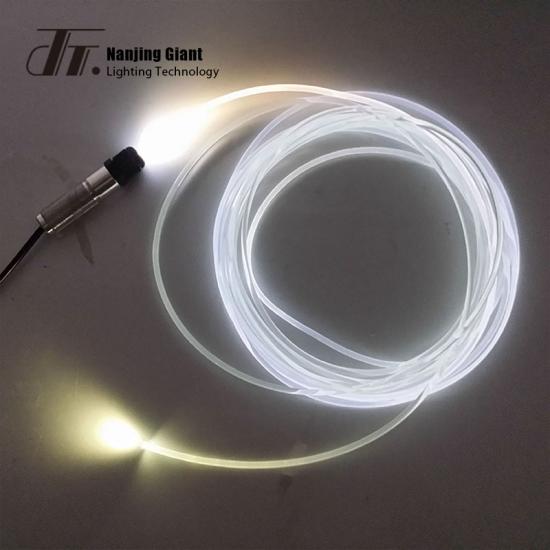

Because of the way they are constructed, with a cladding that is intentionally less effective, light gradually escapes along the whole length of the fiber creating a fairly even glow almost like a neon tube or el wire. However, some light also escapes from the end of the fiber creating a bright point of light where the fiber is cut. The intensity of the fiber's glow depends on the intensity of the light source. For example, a 1 watt LED or a laser will illuminate the fiber more than a neopixel LED.



Side emitting fibers are much more visible in ambient light than end emitting fibers, but they still create a diffused glow that looks better in darkness. Side emitting fibers are great for projects where you want defined lines of light rather than pinpoint sparkles.

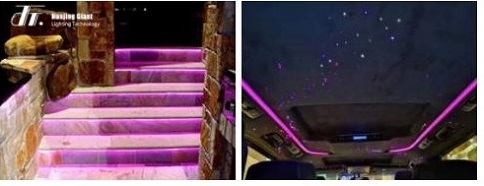

Fiber Optic light Applications:

  • Interior fiber optic light decoration of Swimming pool, car roof, KTV, pubs, coffee houses, hotels and restaurants;

  • Lighting in some dangerous place like oil depot;

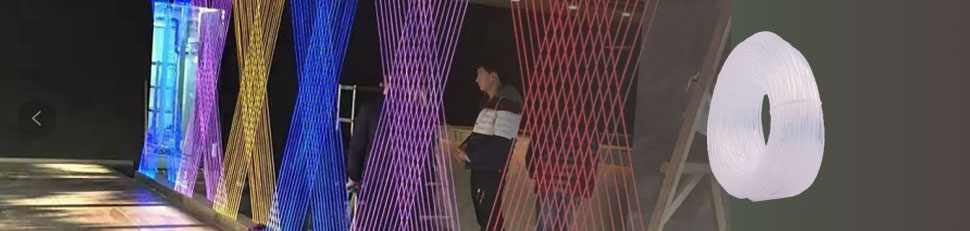

  • Decorative lighting in the park and fairground;

  • Lighting in swimming pool and underwater facilities.



Please contact customer service for  different specifications of optical fiber.


It would be helpful to have the following information ready for discussion:

  • Variety of product model.
  • Variety of fiber diameter.


Product Pictures

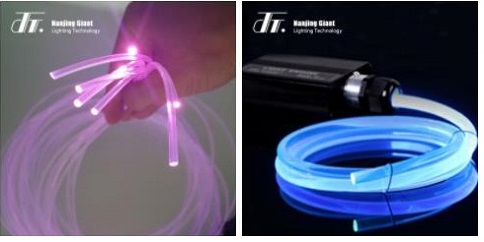

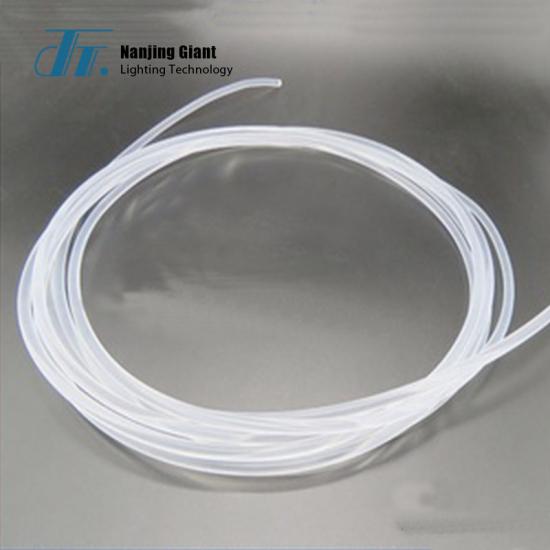

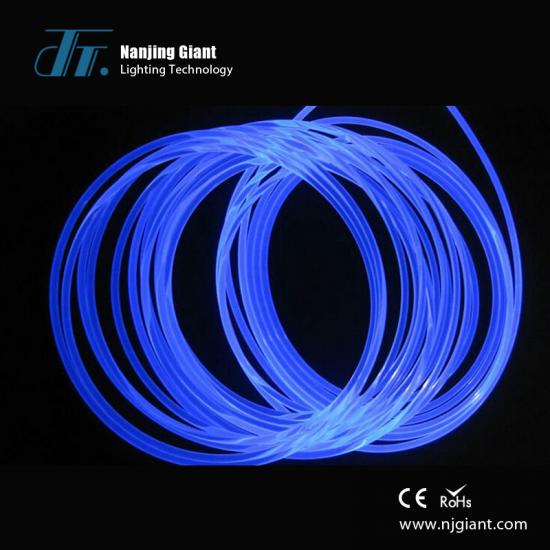

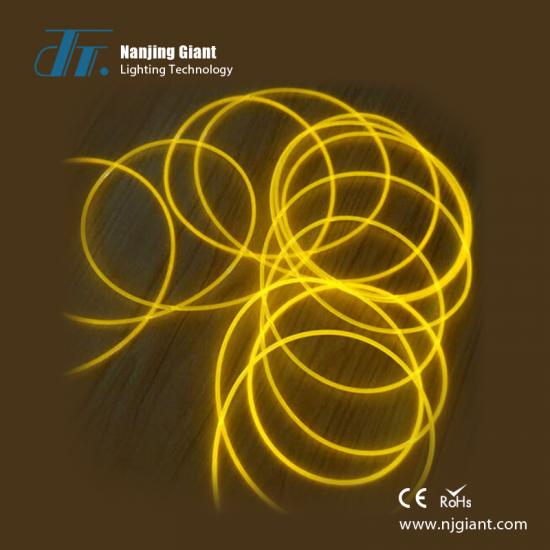

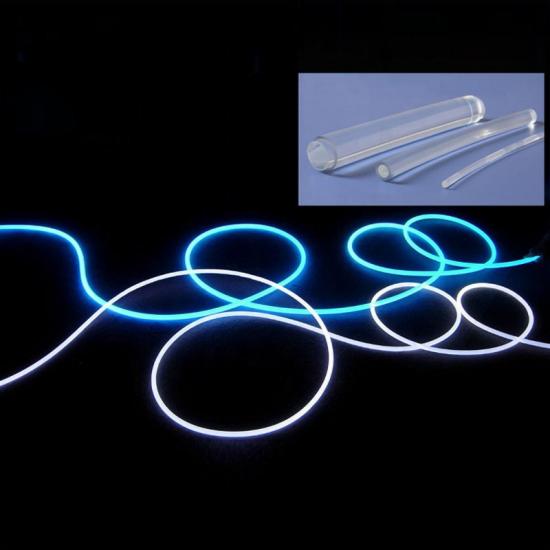

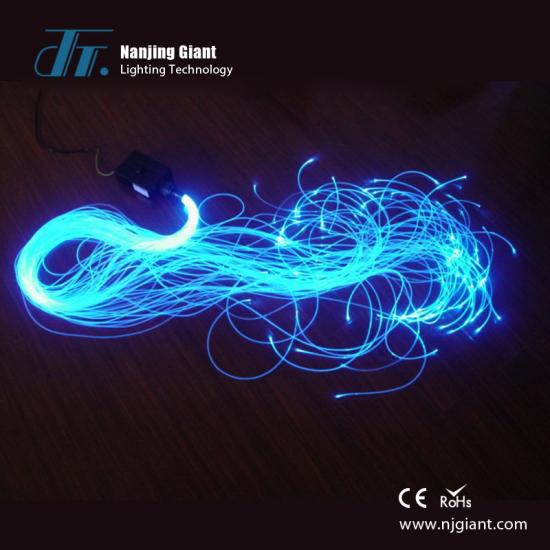

PMMA Plastic Optic Fiber Side Glow CablePMMA Plastic Optic Fiber Side Glow Cable

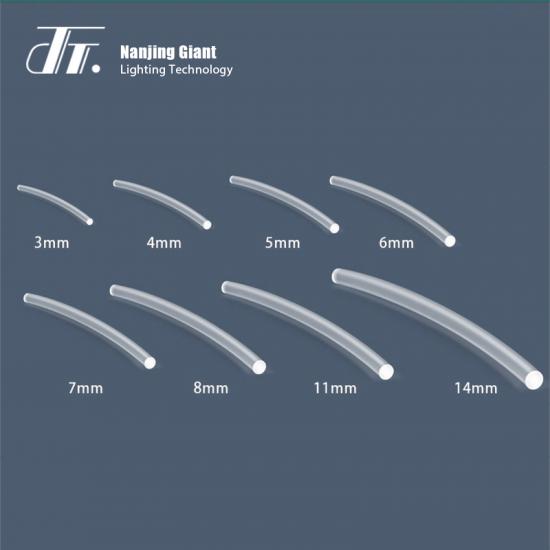

Different size of side glow fiber cable for options:

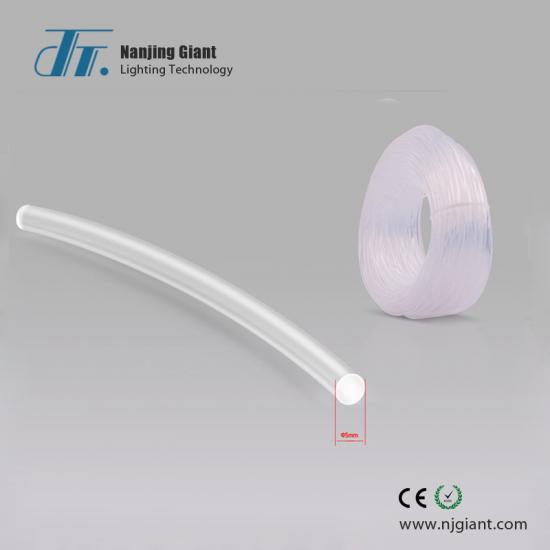

  • Solid core side glow fiber optic cable Φ1.5mm to Φ14mm is available.
  • Safe, only transmit light, non-conductive risk,no heat or electricity transfer.

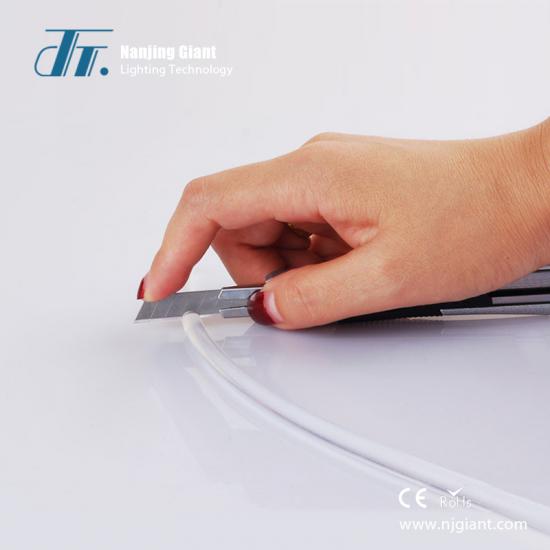

  • Good flexibility, easy installation and maintenance, solid core,not easily to be broken.

  • No infrared transmission and ultraviolet rays,waterproof.

  • Good heat resistance,high brightness.

  • Good aging resistance and long service life,durability.

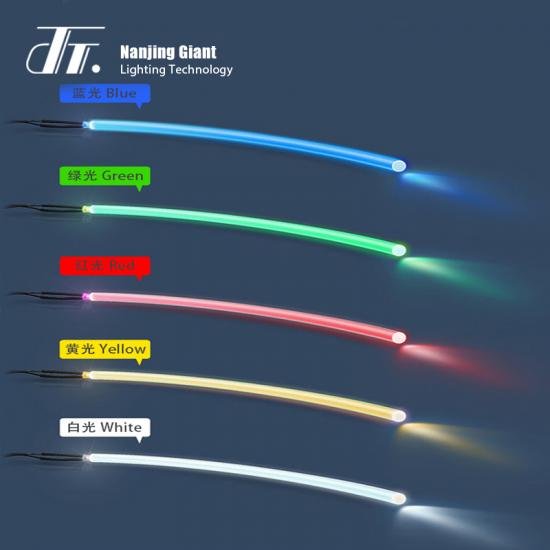

  • Colour change with light engines,Super bright.

  • Large range of diameter(1.5~20mm)


Product Features

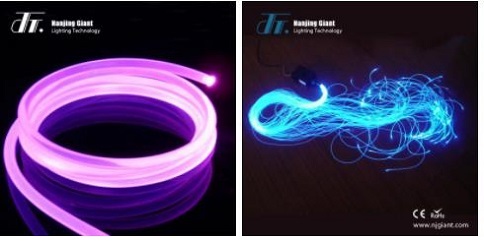

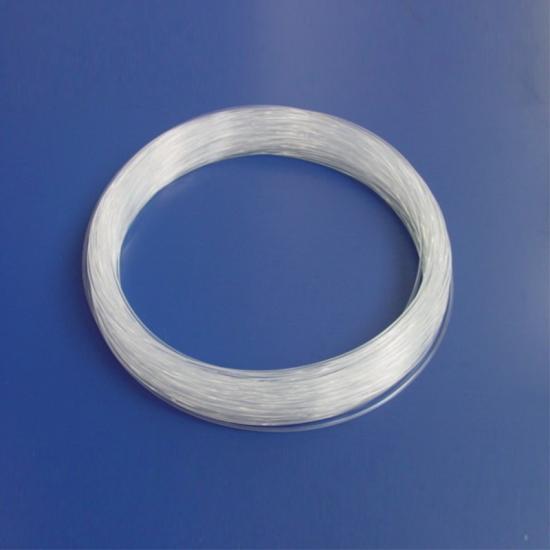

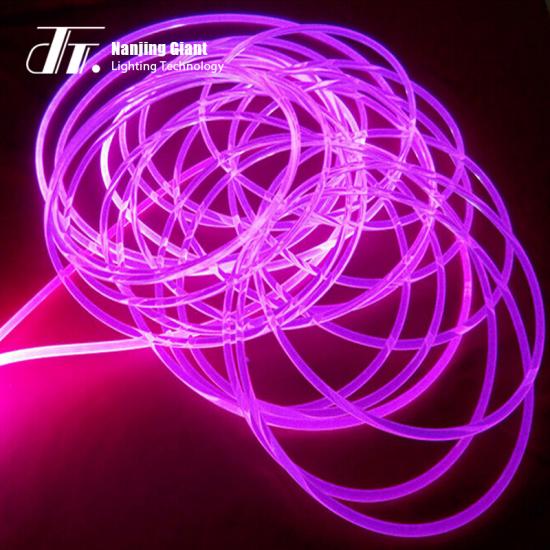

PMMA Plastic Optic Fiber Side Glow CableSide Glow Plastic Fiber Optic

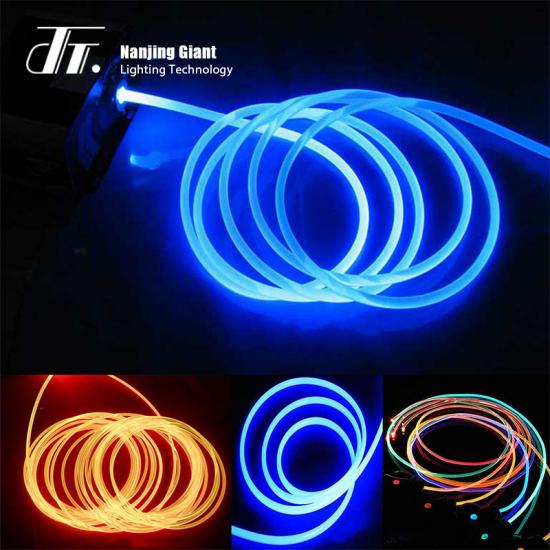

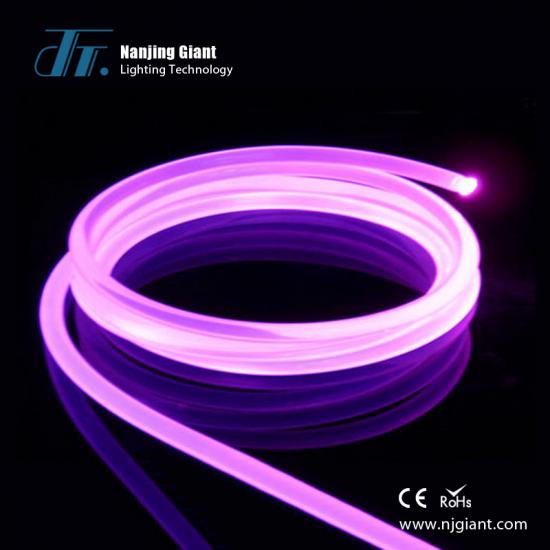

Side Glow Plastic Fiber OpticSide Glow Plastic Fiber Optic


Related Products


Side Glow Fiber Optic PMMA Plastic Cable

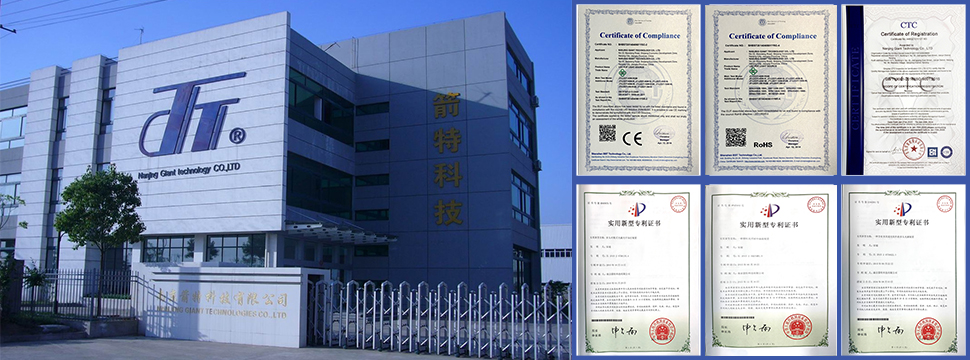

Our Factory


Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


FAQ


Q: What is the application?
A: Mainly used in: illumination and signal transmission, fiber optical sensor, indoor and outdoor decorative illumination.

Q: Is there certification?
A: ISO certification and RoHS testing.

Q: How long is the warranty?
A: 3 years.

Q: How far is the farthest pass?
A: More than 50 meters.

Q: Can the size be customized?
A: Yes, contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: Generally within 2-4 weeks, depending on the product.

Q: Is there a color?
A: Generally white, please contact customer service for other colors.

Q: Can optical fiber emit light?
A: Plastic optical fiber does not emit light. It is only a medium for transmitting light, and it needs to be equipped with a light source.

Q: Is plastic optical fiber safe?
A: Safe, the plastic itself is not conductive.
